Home >> MD300-APS VALVE STEREO PREAMPLIFIER AMPLIFER

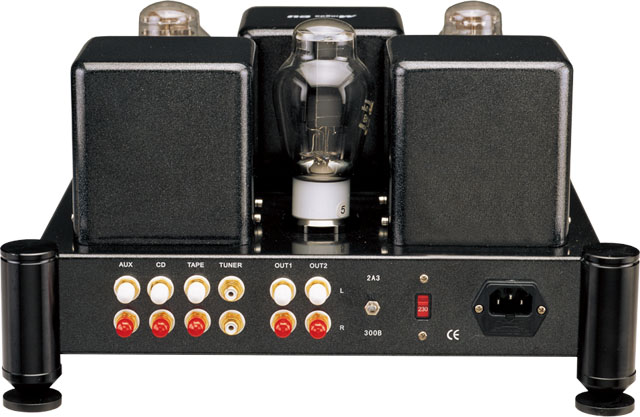

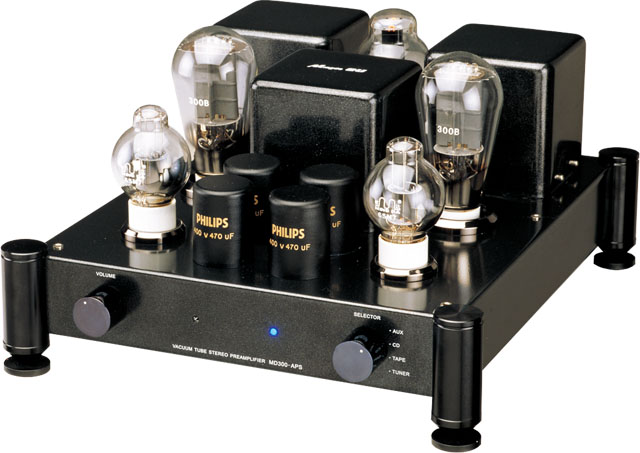

MD300-APS VALVE STEREO PREAMPLIFIER AMPLIFER
(click the pictures below and then it will amplify)






       Parameter & Features



MD300-APS VALVE STEREO PREAMPLIFIER AMPLIFER

Vacuum Tubes£º 300B x2 ¡¢6SN7 x2¡¢274B x1
voltage gain: 20DB
Output Voltage£º 0.8V - 8V
Output Impedance£º 600¦¸
Frequency£º 5Hz¡«150KHz¡À0.6dB
Input Voltage£º 100mv-1000mv
Iutput Impedance£º 100K
Distortion Factor£º ¡Ü0.5%
Signal-to-Noises£º 92dB
Inputs£º 4 Groups
Outputs£º 2 Groups
Size of outer carton£º L55 x W48 x H39(cm)
gross weight: 25kg


0.22uf/630V Denmark Jensen Capacitors.
